How to Configure Port Forwarding for an Internal Web Server?

350-401 By islever Editorial Last updated

Short answer

C interface G0/0

Question

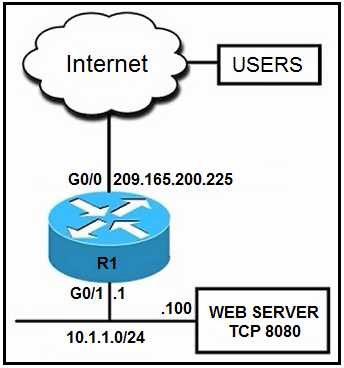

Refer to the Exhibit. External users require HTTP connectivity to an internal company web server that is listening on TCP port 8080. Which command set accomplishes? - Exhibit: How to Configure Port Forwarding for an Internal Web Server?
  1. interface G0/0
  2. interface G0/0
  3. interface G0/0 Correct Answer
  4. interface G0/0

Key Takeaways

It tests precise mastery of the ip nat inside source static tcp command syntax and the inside/outside address hierarchy, where candidates often confuse parameter order or misidentify the target server IP.

This question tests the correct syntax and application of static NAT with port translation to expose an internal web server on a non-standard port to external users. The community consensus identifies option C as correct, acknowledging a known exam typo while validating its port-mapping logic.

Common mistake: Candidates frequently select options A or D by misinterpreting destination NAT syntax or choosing configurations that reference the router's own interface IP instead of the actual web server IP, resulting in failed packet translation.

Expert Analysis

Core Concept: Static NAT with Port Translation

The scenario requires exposing an internal web server listening on a non-standard port to external users accessing via standard HTTP. This is achieved through Static NAT with Port Translation (often called port forwarding or Destination NAT). The router must translate incoming packets destined for its Outside Global IP on port 80 into packets destined for the Inside Local IP on port 8080.

Command Syntax Breakdown

Cisco IOS enforces a strict syntax for static NAT mappings: ip nat inside source static tcp <inside_local_ip> <inside_local_port> <outside_global_ip> <outside_global_port> The command begins with inside source, indicating that traffic from the inside is translated when crossing outward, and vice versa for inbound traffic. Interfaces must be correctly designated with ip nat inside and ip nat outside.

Why Option C is Correct

Despite a widely noted typo in the exam dump where the inside IP is listed as the router's gateway instead of the actual server IP, Option C remains the intended answer because it correctly follows the parameter order and port mapping logic. As highlighted by community experts, the mapping aligns perfectly with the requirement: external users hit port 80, and the router forwards it to the server's port 8080. Community consensus confirms that this bidirectional NAT rule handles both inbound HTTP requests and outbound responses seamlessly.

Analyzing Incorrect Options

  • Option A incorrectly places the Outside Global IP first in the NAT statement, violating Cisco IOS syntax requirements.
  • Options B and D suffer from similar syntactical errors or incorrect IP/port combinations. Several candidates pointed out that multiple options erroneously use the router's interface IP instead of the web server's IP, which would cause NAT to drop traffic since the router itself isn't hosting the web service. Mislabeling interface directions further invalidates these configurations.

Official Reference

RFC 3022: Classical IP and ARP over Ethernet

This link opens the official vendor documentation in a new tab.

Exam Strategy

When tackling NAT configuration questions, immediately map the four translation components: Inside Local IP/Port and Outside Global IP/Port. Memorize the exact Cisco IOS syntax order to rapidly eliminate distractors that swap public/private parameters, and always verify that the translated IP matches the actual end-host rather than the router's gateway interface.

Community Votes

C
59%
A
25%
D
16%

59% of anonymous learners picked answer C. Votes are pick records left by other test-takers — they are not the verified answer.

Discussion 15 contributions

Compiled from public community threads and reader submissions, lightly edited for clarity. Handles and vote tallies are shown as recorded, and comments reflect the views of individual contributors.

From public community threads 15

  1. outnumber_gargle024 👍 11 Answered C
    C. interface G0/0 ip address 209.165.200.225 255.255.255.224 ip nat outside interface G0/1 ip address 10.1.1.1 255.255.255.0 ip nat inside ip nat inside source static tcp 10.1.1.1 8080 209.165.200.225 80 This translates traffic on http standard port (80) to port 8080. 8080 is not a default http port... doesn't make sense that anything outside of this private network would be trying to send http traffic to 8080
  2. teems5uk 👍 7 Answered A
    interface G0/0 ip address 209.165.200.225 255.255.255.224 ip nat outside interface G0/1 ip address 10.1.1.1 255.255.255.0 ip nat inside ip nat inside source static tcp 209.165.200.225 8080 10.1.1.100 8080 The external interface (G0/0) is configured as an "outside" interface using ip nat outside. The internal interface (G0/1) is configured as an "inside" interface using ip nat inside. The static NAT translation is set up using ip nat inside source static tcp, which maps the external IP address and port to the internal IP address and port. This configuration ensures that traffic entering the router from the internet on port 8080 is translated to the internal web server (10.1.1.100) on port 8080. Options B, C, and D have incorrect configurations for achieving the specified goal.
  3. apetrov 👍 4
    Did you notice that B C Dall have ip nat inside source static 10.1.1.1? 10.1.1.1 is the router IP address, while the task says that we should redirect to a WEB server address which is 10.1.1.100
  4. EvillNL 👍 3 Answered C
    The correct answer is C although there is a typo of the inside local IP - should be 10.1.1.100 interface G0/0 ip address 209.165.200.225 255.255.255.224 ip nat outside interface G0/1 ip address 10.1.1.1 255.255.255.0 ip nat inside ip nat inside source static tcp 10.1.1.100 8080 209.165.200.225 80 extendable The correct syntax of the ip nat command is: ip nat inside source static <protocol> <inside_local> <local_port> <inside_global> <global_port> local = private ip global = public ip
  5. kldoyle97 👍 3
    Based on the wording of the question, the answer is either A or C since G0/1 is the inside address. I believe the translated address should be 10.1.1.100 not "10.1.1.1" since we want to translate the servers address in choice C. Choice A looks correct if we are trying to do Destination NAT, but it specifies "source". Not sure what to go with :/
Show 10 more comments
  1. anonymous1966 👍 3 Answered C
    The traffic coming from the web would probably use the TCP port 80 and the server is listening for the TCP port 8080. When you configure a NAT translation, it applies for both incoming and outgoing traffic.
  2. ali_sh85 👍 3 Answered D
    I think D is correct, it should be a Destination NAT
  3. artilling 👍 1 Answered D
    Sorry for my English. Confused question. In options "B", "C" the source IP address is incorrect. In option “A” the public IP address is indicated first. And you will never have a NAT match in your life. While interface G0/0 "nat outside" In option "D" ip nat is incorrectly specified internally on interface G0/0. But if we do not have information that PAT is running on the router, or there is another Static NAT. Why don't we choose option "D"? After all, then the configuration will be correct and requests from the ISP on port 80 will be redirected to the WEB server on port 8080
  4. zbeugene7 👍 1 Answered D
    Correct answer is D. A and C are incorrect: NAT translation is done similar to the LB case with VIP as destination. This is similar however we have a single server so VIP is the outside interface ip , that is 209.165.200.225, hence the translation should be from 209.165.200.225 <80> to 10.1.1.1 <8080>. like it's in A except in A answer the port is incorrect.
  5. chiacche 👍 1
    ip nat inside source static tcp 209.165.200.225 8080 10.1.1.100 8080 # Configure NAT mapping to map the external IP address and port (209.165.200.225:8080) to the internal web server (10.1.1.100:8080)
  6. Outlaw_87 👍 1 Answered C
    From the picture Web Server IP is - 10.1.1.100 Last line should be like this: ip nat inside source static tcp 10.1.1.100 8080 209.165.200.225 80
  7. XomXom 👍 1
    normally the incoming traffic (source) is holding a random port, destination is 8080. where we got this 80?
  8. [Removed] 👍 1 Answered C
    C is correct look at the source port and the source ip
  9. Rfvaz 👍 1 Answered A
    Answer A, focus on the server!
  10. Alfredomulemarchese 👍 1
    ChatGPT says "A"
