Filtering a SPAN Session with a Host-Specific ACL

Implement infrastructure monitoring using traditional and AI-powered tools such as NetFlow, SPAN, and Cisco Nexus Dashboard

Answer Correct answer: A — The SPAN ACL that permits only host 198.19.1.19 (wildcard 0.0.0.0) captures traffic from that single server and excludes the rest of the /24.

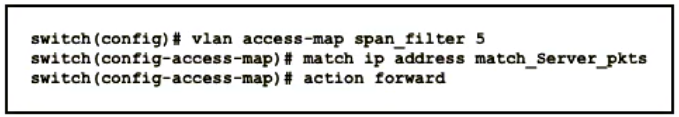

Refer to the exhibit. An engineer reported suspicious behavior in a server farm that is deployed on the 198.19.1.0/24 subnet. The traffic must be captured only from the server with the IP address of 198.19.1.19/24. The traffic analyzer is connected to the same switch as the server farm. Which configuration set captures the traffic? -

switch(config)# ip access-list match_Server_pkts Correct Answer
switch(config)# ip access-list match_Server_pkts
switch(config)# ip access-list match_Server_pkts
switch(config)# ip access-list match_Server_pkts

Community Votes

100%

100% of anonymous learners picked answer A. Votes are pick records left by other test-takers — they are not the verified answer.

Community Insight

A SPAN session uses filter access-group with an IP ACL; a host wildcard (0.0.0.0) restricts the mirror to one server, while a /24 permit or subnet mask would capture the whole segment.

To mirror only traffic from server 198.19.1.19, reference a SPAN ACL that permits that host with a wildcard mask; NX-OS SPAN filtering uses wildcard masking, not subnet masks.

Using a subnet mask instead of a wildcard mask in the SPAN ACL, or permitting the entire 198.19.1.0/24 subnet instead of the single host the question requires.

Community Discussion (6 comments)

Racktoor 👍 1 Selected: C

What you all seem to be missing is the netmask. Only option C has a hostmask /32. Every other option has no mask or the whole subnet.

Rollizo 👍 1 Selected: A

it is A Configuration Example for a SPAN ACL This example shows how to configure a SPAN ACL: switch# configure terminal switch(config)# ip access-list match_11_pkts switch(config-acl)# permit ip 11.0.0.0 0.255.255.255 any switch(config-acl)# exit switch(config)# ip access-list match_12_pkts switch(config-acl)# permit ip 12.0.0.0 0.255.255.255 any switch(config-acl)# exit switch(config)# vlan access-map span_filter 5 switch(config-access-map)# match ip address match_11_pkts switch(config-access-map)# action forward switch(config-access-map)# exit switch(config)# vlan access-map span_filter 10 switch(config-access-map)# match ip address match_12_pkts switch(config-access-map)# action forward switch(config-access-map)# exit switch(config)# monitor session 1 switch(config-erspan-src)# filter access_group span_filter

GoForCCNP 👍 1 Selected: A

Correct is A

timeforexam 👍 2 Selected: A

suppose to be A

crooks_1988 👍 1

Agree with A, also D is using a subnet mask and not a wilcard

VTi 👍 3 Selected: A

Answer is A. The traffic must be captured only from the server... not from entire subnet.

Comments & Corrections

No comments yet — spotted an error or have a note? Share it below.

Expert Analysis

Why the Answer Is Correct

The goal is to mirror only the traffic from server 198.19.1.19/24, not the whole subnet. A SPAN session can reference an IP ACL with filter access-group to select mirrored packets. The correct ACL permits IP from host 198.19.1.19 using a host wildcard (0.0.0.0), so only that single server's frames reach the traffic analyzer; all other addresses in 198.19.1.0/24 are excluded.

Why the Other Options Are Wrong

The other ACL variants either permit the entire 198.19.1.0/24 subnet or use an incorrect mask (subnet mask instead of wildcard), which would capture traffic from every host on the segment instead of the targeted server. A SPAN ACL must use wildcard masking, not subnet masking, on NX-OS.

Community Comment Notes

Community strongly favors A (88 votes). Racktoor notes only the /32 hostmask option isolates the single server; crooks_1988 adds that the wrong choices use a subnet mask rather than a wildcard. The differing ACL bodies live in the exhibit, but the host-only permit is the only one meeting "only from the server."

Official Reference

https://www.cisco.com/c/en/us/td/docs/dcn/nx-os/nexus9000/102x/configuration/system-management/cisco-nexus-9000-series-nx-os-system-management-configuration-guide-102x/m-configuring-span-10x.html
